Five Optical Channels Multi-Function Binocular

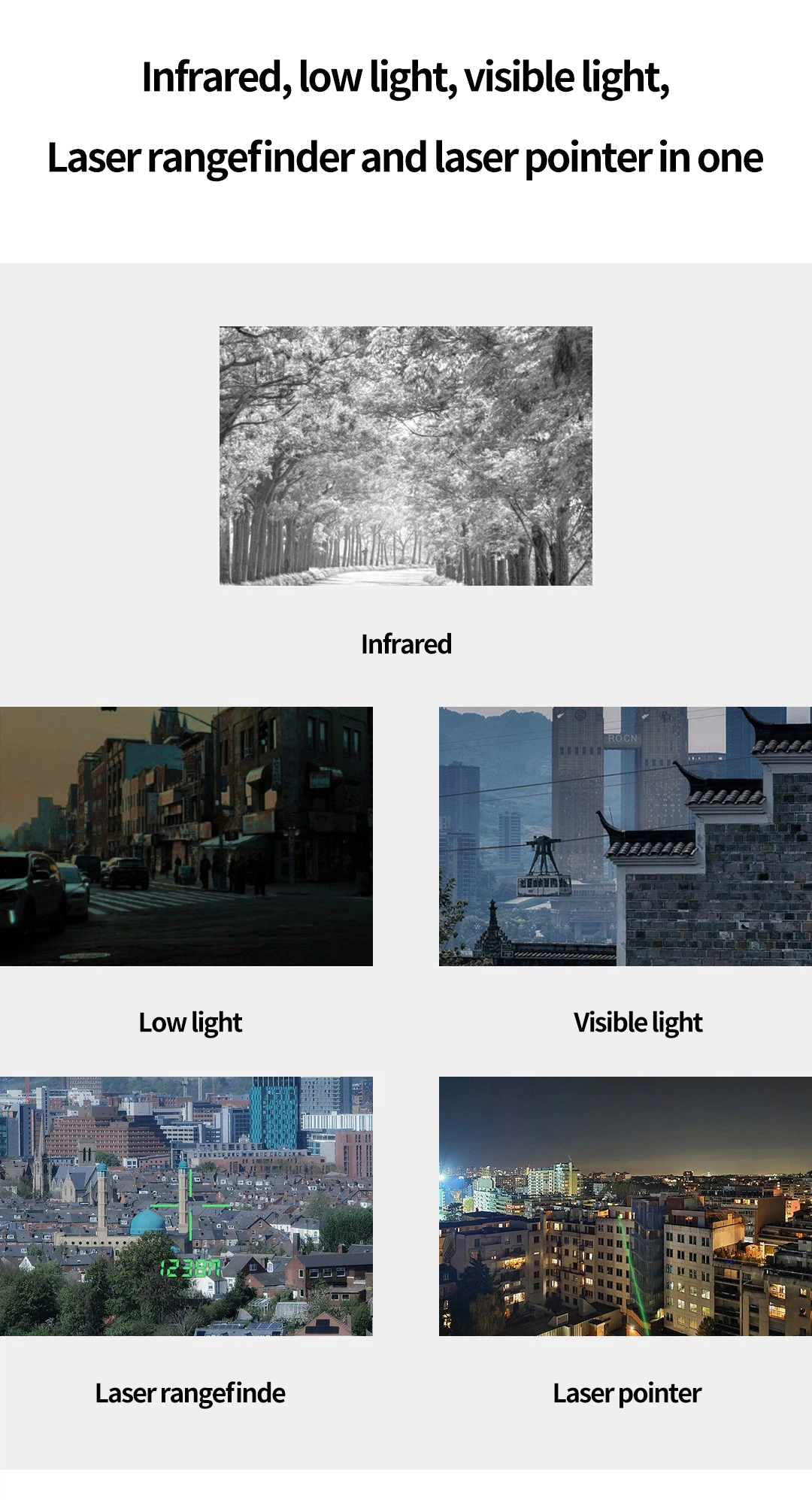

Infrared, low light, visible light, laser rangefinder and laser pointer in one
High-resolution 1280×1024 OLED display screen
Support for GPS, BD localization
Work continuously for more than 8 hours
Wi-Fi data transmission
Waterproof grade IP67
Products Description

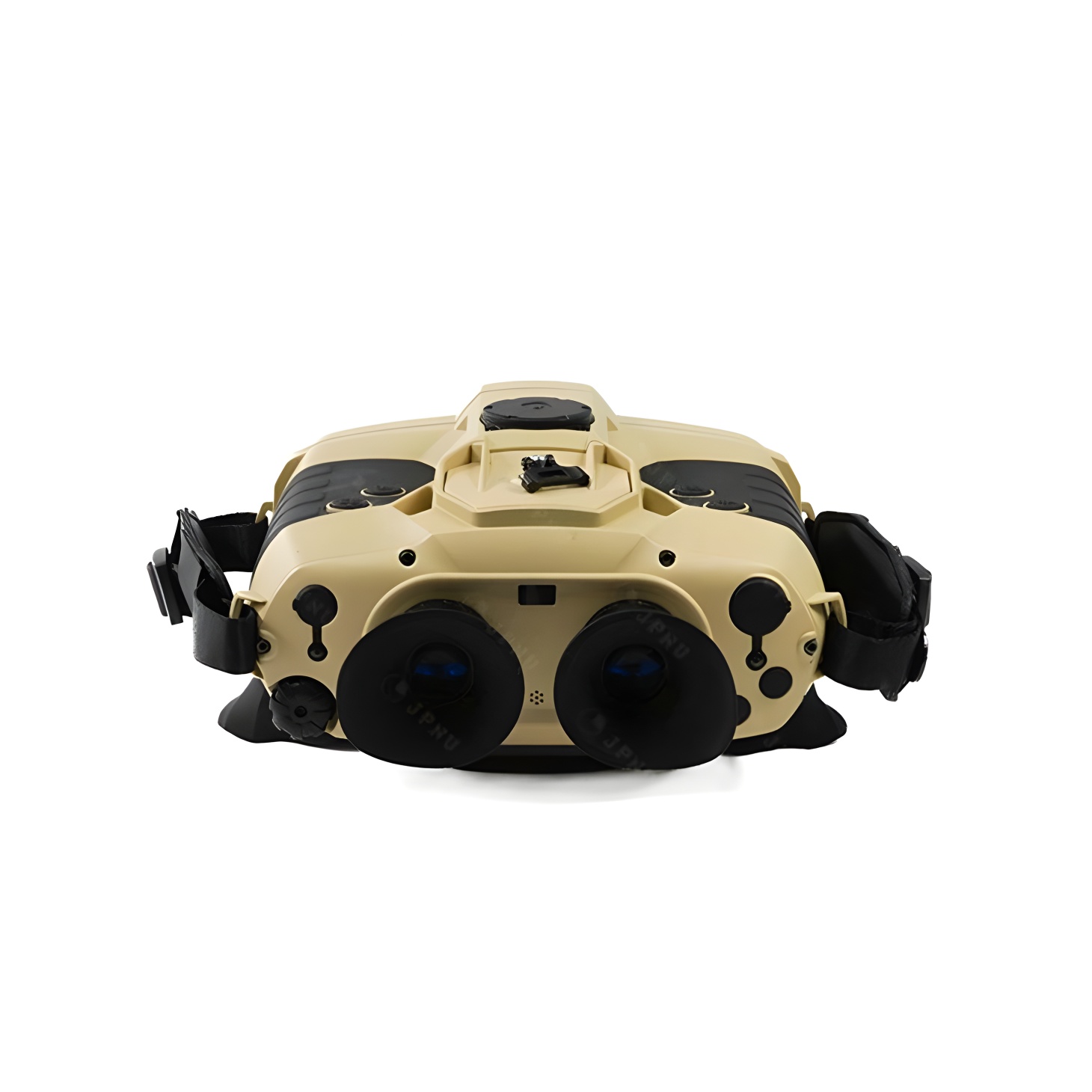

The TH-D5 Five Optical Channels Multi-function Binocular with Five Optical Channels is an intelligent observation device that combines infrared low-light visible light, laser ranging instrument, into one product.
It has a built-in positioning module, a digital magnetic compass, and a laser rangefinder, making it an extremely versatile and efficient tool for observing and exploring. The five optical channels enable you to switch between infrared, low-light, and visible light modes, providing crystal clear images and enhancing your view.
The laser rangefinder function provides accurate distance measurements, making it easier to determine the distance between yourself and the object you are observing. The laser pointer enables you to point to areas of interest and guide your fellow observers.
The TH-D5 Five Optical Channels Multi-function Binocular with Five Optical Channels is constructed using high-quality materials and incorporates advanced technology to provide superior performance in challenging environments. With excellent durability and a compact design, it is portable and perfect for on-the-go use.
In conclusion, the TH-D5 Five Optical Channels Multi-function Binocular with Five Optical Channels is an exceptional observation device. It is versatile, efficient, and precise, making it an ideal tool for outdoor enthusiasts, hunters, security personnel. Its advanced features, including the laser rangefinder, and positioning module, make it a must-have for any situation where precision observation is critical.
Technical Parameters
| Infrared Thermal Imaging | |
| Resolution | 640×512, 12 μm |
| Spectral Band | 8~14 μm |
| FOV | 6.1°×4.8° |
| Low-Light Imaging | |
| Resolution | 750×600 |
| Low Illumination Capability | 0.001 lux |
| FOV | 6.8°×5.5° |
| Visible Light Imaging | |
| Resolution | 4.6 megapixels |
| FOV | 4.6°×3.7° |
| Laser Rangefinder | |
| Wavelength | 1535 nm |
| Maximum Measurement Range | ≥6 km |
| Minimum Measurement Range | ≤50 m |
| Measurement Accuracy | 2 m |
| Location Module | |
| Location Mode | BD, GPS |
| Horizontal Location Accuracy (Cep) | 5 m |
| Elevation Location Accuracy (Pe) | 10 m |
| Digital Magnetic Compass | |
| Magnetic Azimuth Measurement Range | 0~360° |
| Magnetic Azimuth Measurement Accuracy | 0.5° |
| Pitch Angle Measurement Range | -90°~+90° |
| Pitch Angle Measurement Accuracy | 0.4° |
| Inclination Angle Measurement Range | -180°~+180° |
| Inclination Angle Measurement Accuracy | 0.5° |
| Laser Pointer | |
| Wavelength | 830 nm |
| Security Level | 5 mW, Class IIIA |
| Display | |
| Resolution | 1280×1024 |
| External Interface | |
| Aviation | DC/USB/PAL/RS232 |
| Display | HDMI |
| Wireless Transmission | WIFI |
| Overall Device | |
| Storage | 64G |
| Ocular Lens Diopter | -4~+4 |
| Weight | 2.1 kg |
| Operating Time | ≥8 h |
| Operating Temperature | -40°C~+55°C |
| Storage Temperature | -55°C~+70°C |
| Waterproof Grade | IP67 |
