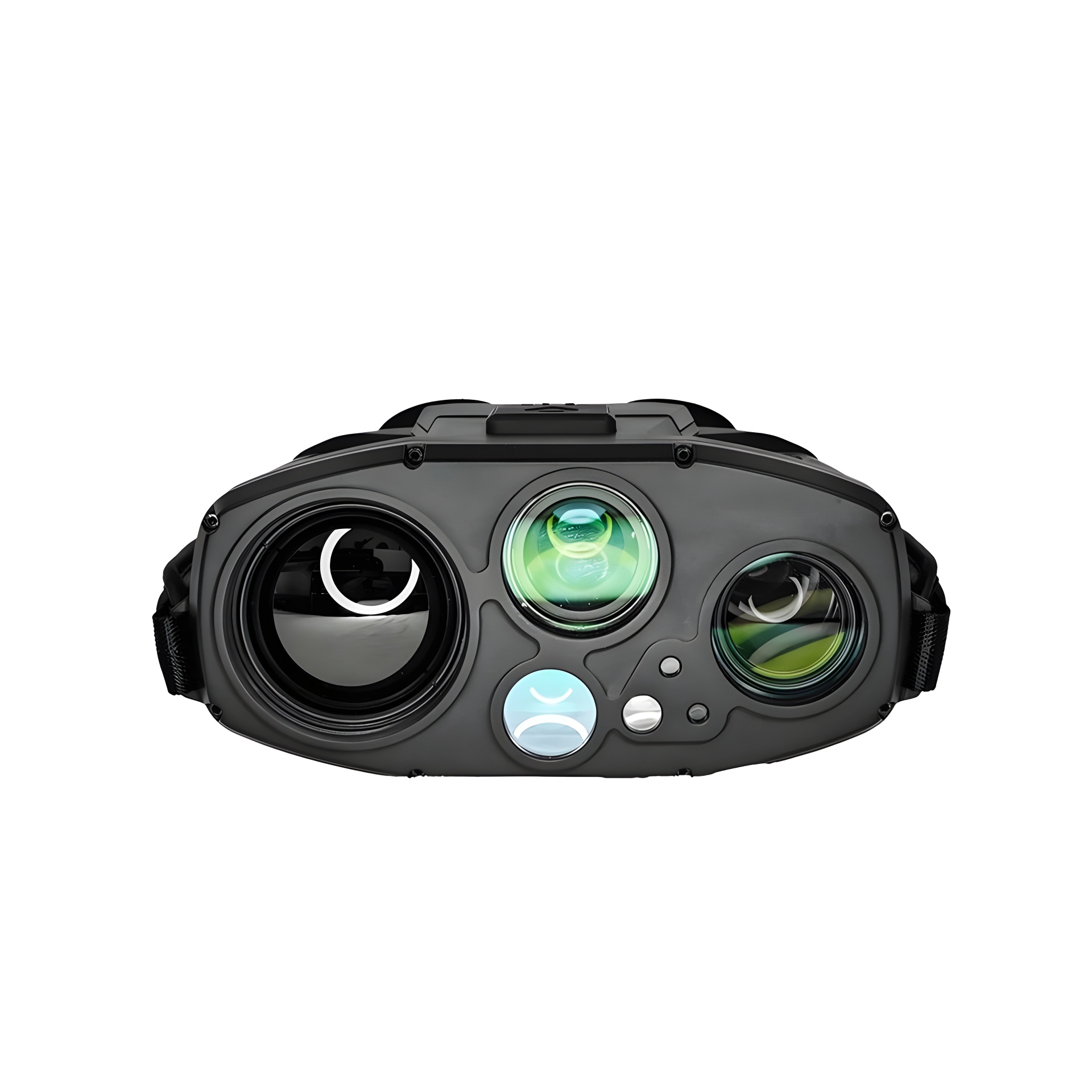

UND-D6 Multifunction Uncooled Thermal Imaging Binoculars Camera
UND--D6 handheld Multifunctional fusion low light optics and Laser ranging Laser indication night vision binoculars camera
Integrated with infrared imaging, HD visual imaging, visual imaging with low light and 800x600 8μm large pixel,and low light infrared image fusion, the camera can perform the search, identification and targeting to the object in any condition. With the Eye-safe laser ranging, 830nm and 520nm laser indicator, compass and satellite positioning, the camera can perform functions such as: distance ranging, indication, expelling, target positioning, multi-target Relative positioning, target directing etc. image capturing, video recording, playback, video output, USB media file management, WIFI image transmission, user-friendly human-machine interface Provides HD video out and OLED binocular display, user can observe with OLED or external HDMI equipment.
Product Features
Integrated with infrared imaging, HD visual imaging, visual imaging with low light and 800x600 8μm large pixel,and low light infrared image fusion, the camera can perform the search, identification and targeting to the object in any condition.
With the Eye-safe laser ranging, 830nm and 520nm laser indicator, compass and satellite positioning, the camera can perform functions such as: distance ranging, indication, expelling, target positioning, multi-target Relative positioning, target directing etc.
Image capturing, video recording, playback, video output, USB media file management, WIFI image transmission, user-friendly human-machine interface
Provides HD video out and OLED binocular display, user can observe with OLED or external HDMI equipment.
Technical Parameters
| Items | Specifications |
| Thermal Imaging | NETD
Recognition Range | ≤45 mK
≥ 4km, vehicle-size target
≥ 1.5km, human |
| Visual Imaging | Visual Detector | CMOS, 1920×1080, 1/2.8 |
| Visual Lens | WFOV 61.3°×36.8°, NFOV 3.4°×1.9°±5% |
| Low-light
Visual Imaging | Detector
Lens | CMOS, 800×600, 8 μm
50mm f1.4, 7.32°×5.5° |
| Laser
Rangefinder | False Detection Rate | ≤ 2% |
| Positioning and Orientation | Angle Accuracy | ≤ 0.3° (RMS) pitch angle |
| Laser Pointer | Unvisible | 850nm, 30mW |
| Display | Eyepiece | OLED, 1920×1080, 0.71", binocular |
| Video Recording | Storage size | ≥ 64G |
| Interfaces | Video Output | PAL, HDMI |
| Physical | Size (L×W×H) | 230mm×230mm×130mm |
